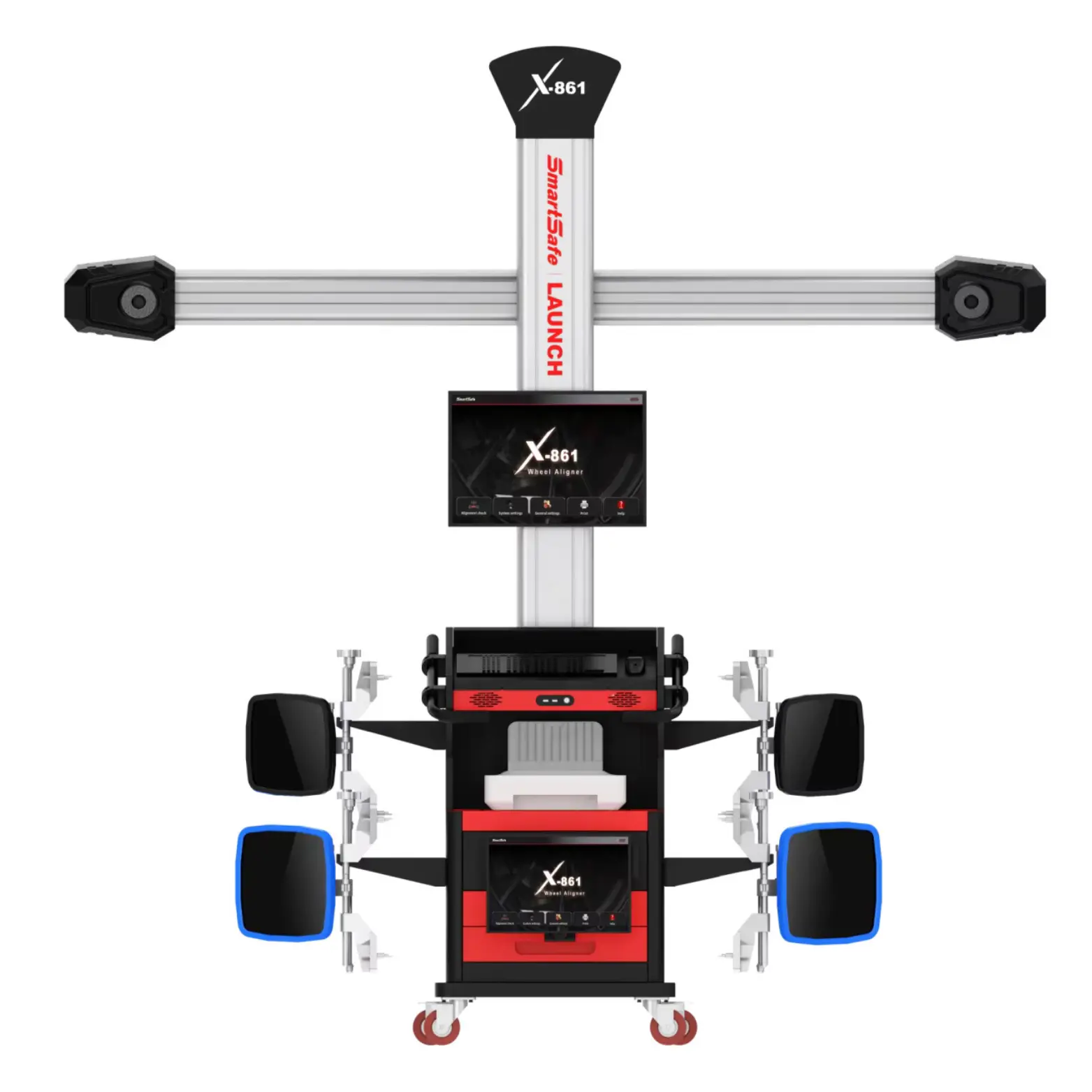

Launch/SmartSafe X-861 PRO Wheel Alignment
Launch/SmartSafe X-861 Pro Wheel Alignment is an Ultra HD 4 . Automatically adjusts the height of the camera beam according to the height of the target, moving cabinets, and beams built for increased productivity. it is an intelligent 3D four-wheel aligner that can collect ultra-high speed and high-precision tire data for the vehicle.
| Functions | Description | √ |
| Four-wheel alignment measurement | Supports standard measurement and quick measurement, can measure key parameterssuch as toe-in, camber, caster angle, kingpin inclination, thrust angle, etc, supports wheelbase, wheelspan, and axle deviation.additional measurements such as shift, wheel offset, diagonal, center offset, etc | √ |
| Intelligent self-adaptive tracking system | Automatically track the target, and adjust the height of the beam adaptively accord.ing to the height of the target | √ |
| Database | Supports positioning data of 50,000+ global vehicle models, and supports user-defined database; | √ |
| Test report | Support measurement report saving and printing | √ |
| Compatible with multiple platforms | Suitable for four-post lifts, large scissors lifts, small scissors lifts, two-post ifts and trenches | √ |
| Multi-station sharing | The whole machine is moveable, which is convenient for multi-station sharing | √ |
| Dua-screen display | Support dual-screen display at the same time, an optional secondary screen is required | √ |
Display Accuracy | 1’/0.01/0.1mm | Kingpin Inclination | ±6′ |
Toe | ±2′ | Trust Angle | ±2′ |
Camber | ±2′ | Wheel Track | ±2mm |
Caster | ±4′ | Wheel Base | ±2mm |
- Do not place the computer host and/or monitor in a place with a radioactive source and heat source, or in other environments where it is exposed to direct sunlight, heat, cold and humidity.
- Do not insert anything into the host and monitor through the gap.
- Do not move or violently shake the computer while it is working.
- Avoid frequent boot.
- Do not modify the BIOS settings.
- Do not delete the files you do not understand on the hard disk, to prevent the computer from abnormal operation or breakdown.
- The host computer is dedicated to the 3D wheel aligner. Do not use extraneous software on this equipment, to avoid virus infection. The warranty expires automatically for any system problem due to virus infection.
